Description
- Hign-concerned Chemical: None
- Type: Valves

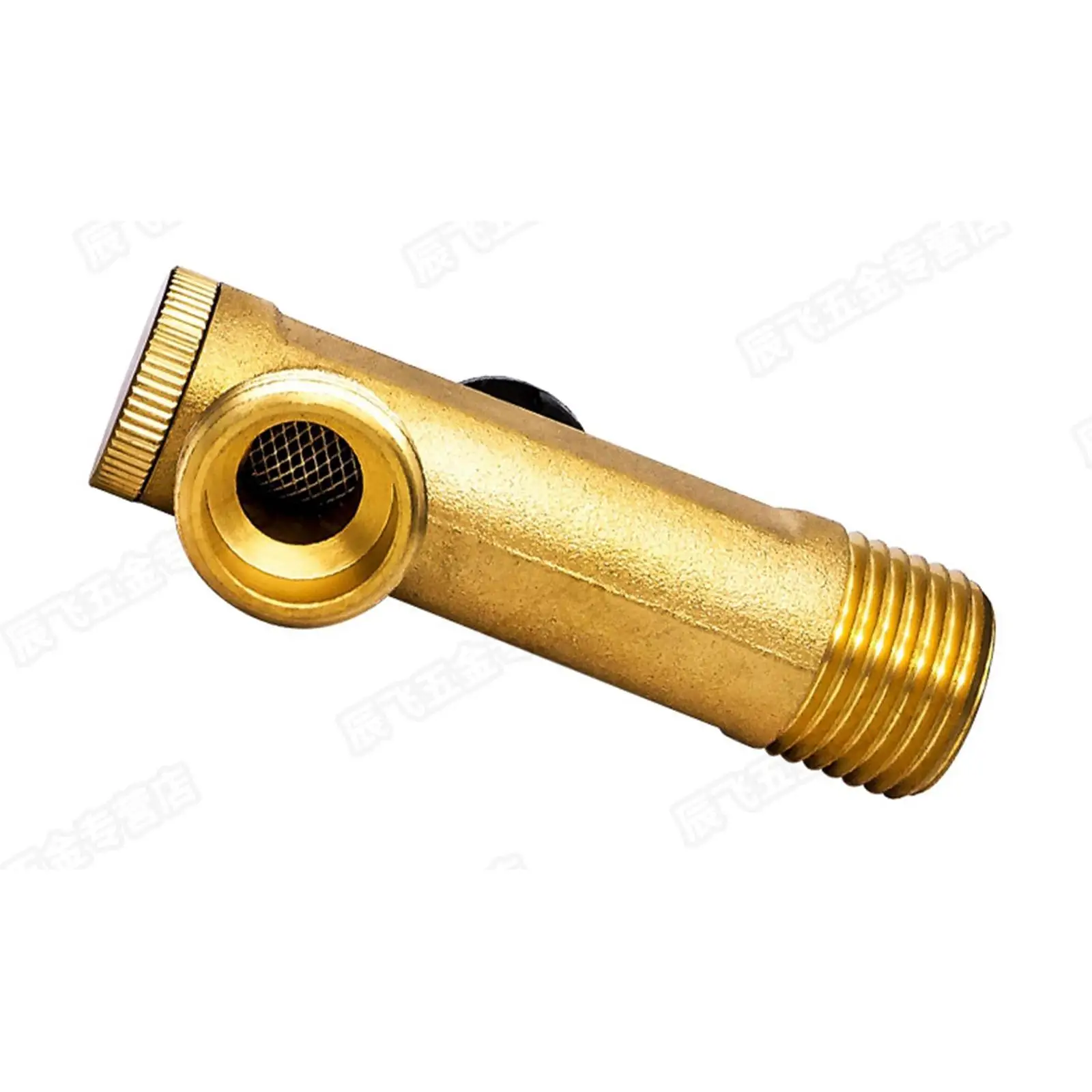

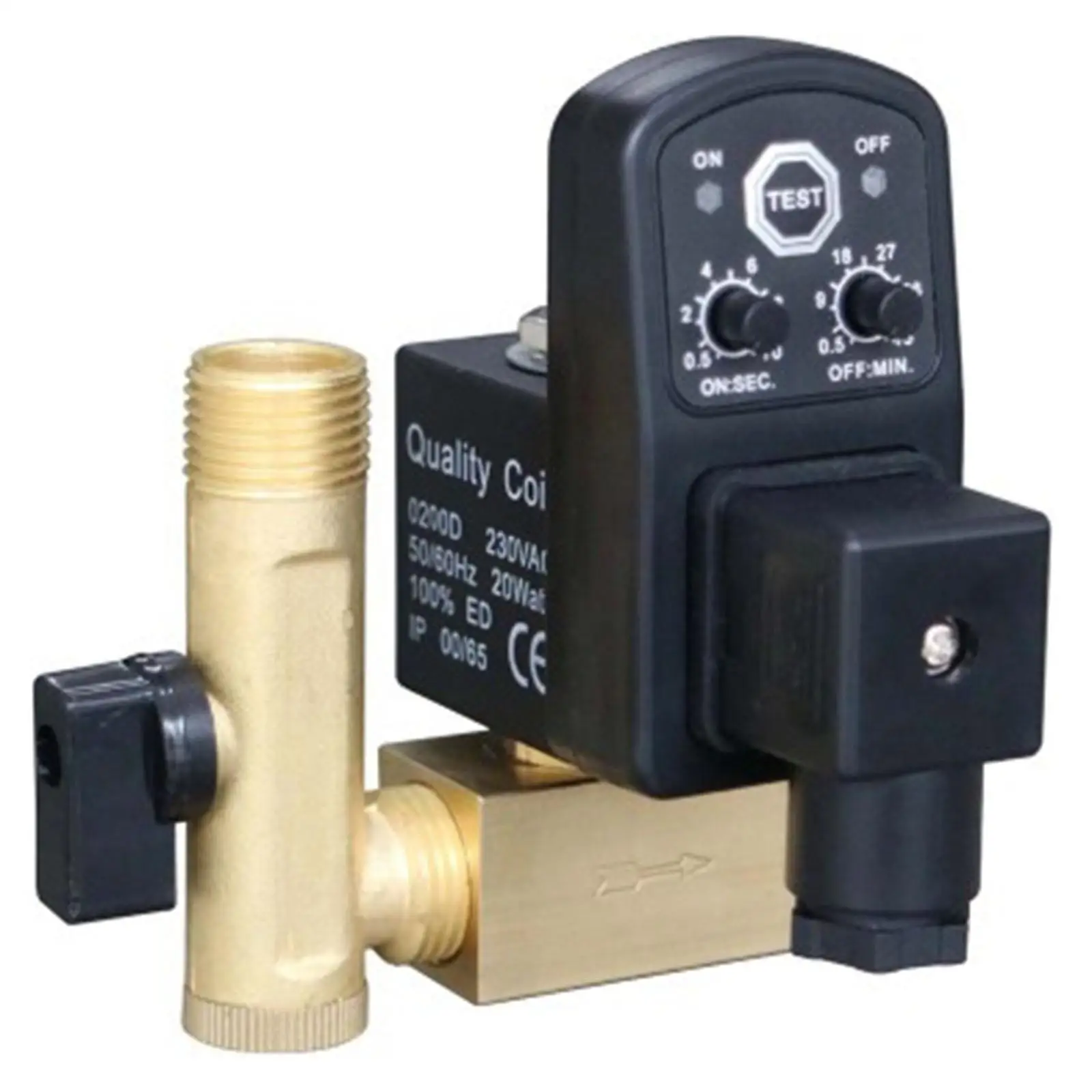

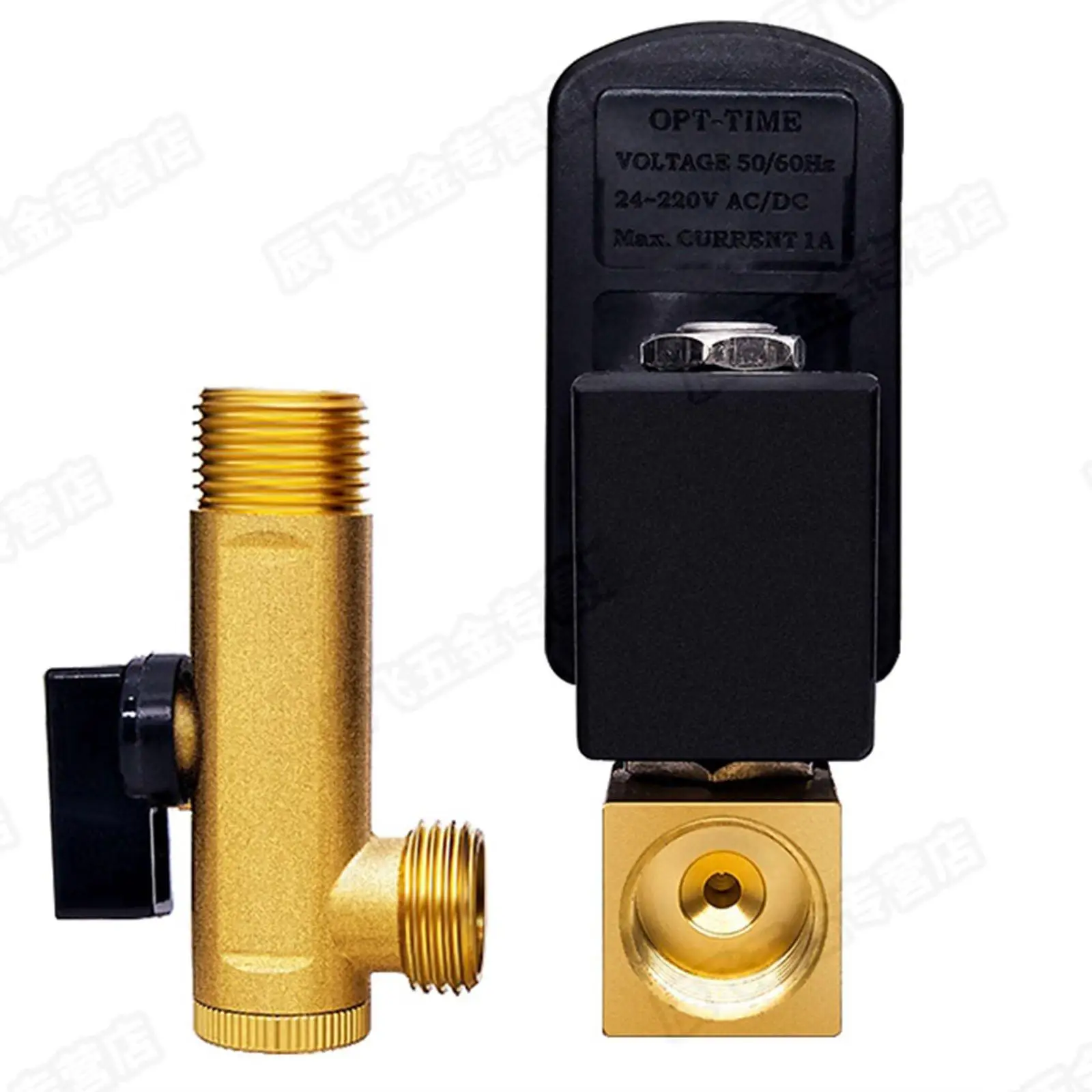

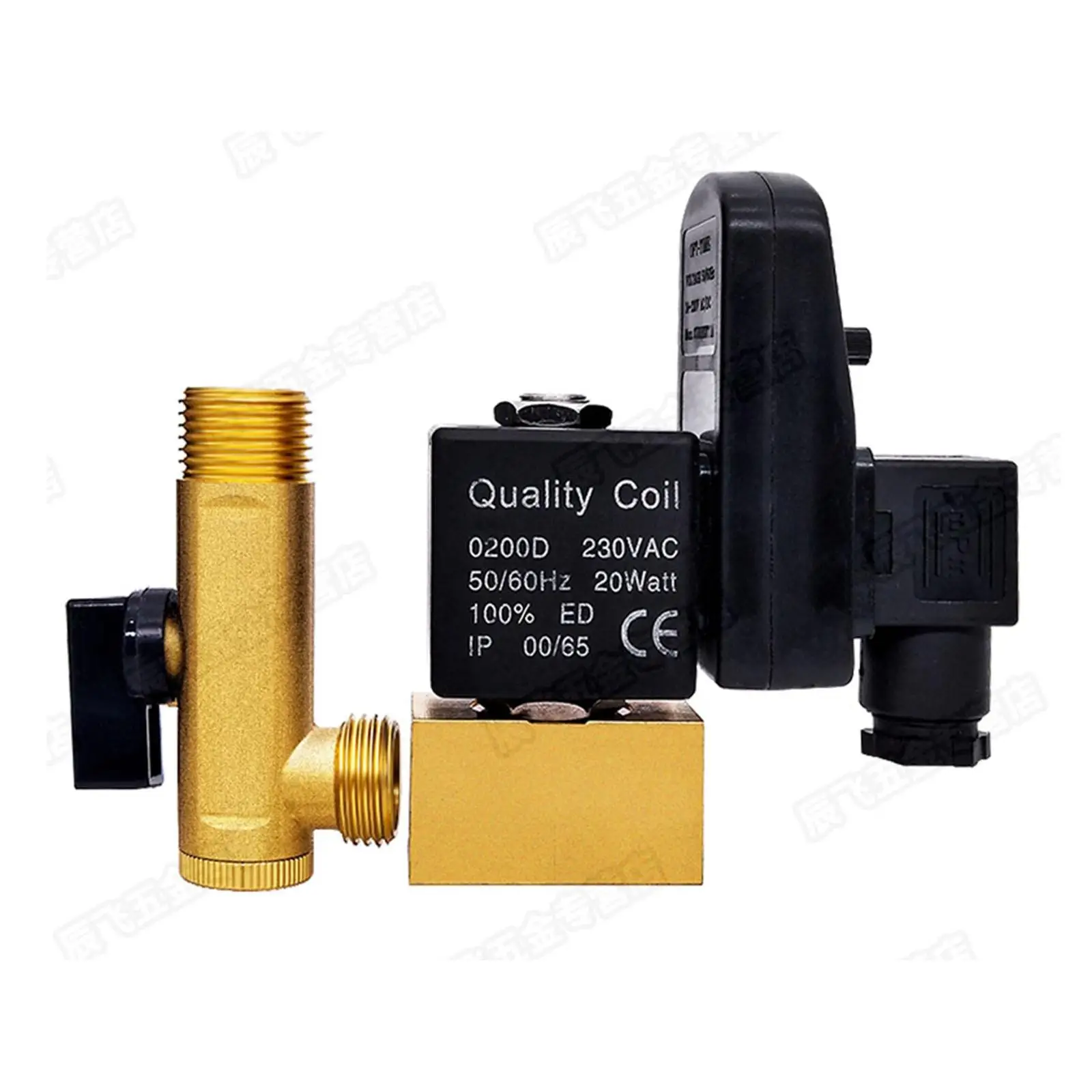

Product Item:110/220/380VAC 24VDC 1/2”BSP Auto Electronic Drain Timer Water Valve Air Compressor Split Type
Voltage:110/220/380VAC,24VDC
Voltage Range: ±10%
Type:Split Type
In/out port size:1/2”BSP
Valve Material:Brass
Shell Material:ABS Plastic
Time interval (OFF): 0.5–45 minutes
Discharge time (ON): 0.5–10 seconds
Pressure range:0.1-1.6MPa
Fluid temperature:5℃ to 80℃
Ambient temperature:-40℃ to 60℃
Max current consumption:4MA
Electrical connection:DIN43650A
Protection grade:IP65
It is used in filters, oil-water separator, refrigerated dryers, cold and dry machines, air compressors, air cylinders, dripping feet and other compressed air system components.
Each Bid for 1 Piece!
Voltage:110/220/380VAC,24VDC
Voltage Range: ±10%
Type:Split Type
In/out port size:1/2”BSP
Valve Material:Brass
Shell Material:ABS Plastic
Time interval (OFF): 0.5–45 minutes
Discharge time (ON): 0.5–10 seconds
Pressure range:0.1-1.6MPa
Fluid temperature:5℃ to 80℃
Ambient temperature:-40℃ to 60℃
Max current consumption:4MA
Electrical connection:DIN43650A
Protection grade:IP65
It is used in filters, oil-water separator, refrigerated dryers, cold and dry machines, air compressors, air cylinders, dripping feet and other compressed air system components.
Each Bid for 1 Piece!
