– Yellow for ground;
– Green for signal output.

Specifications:

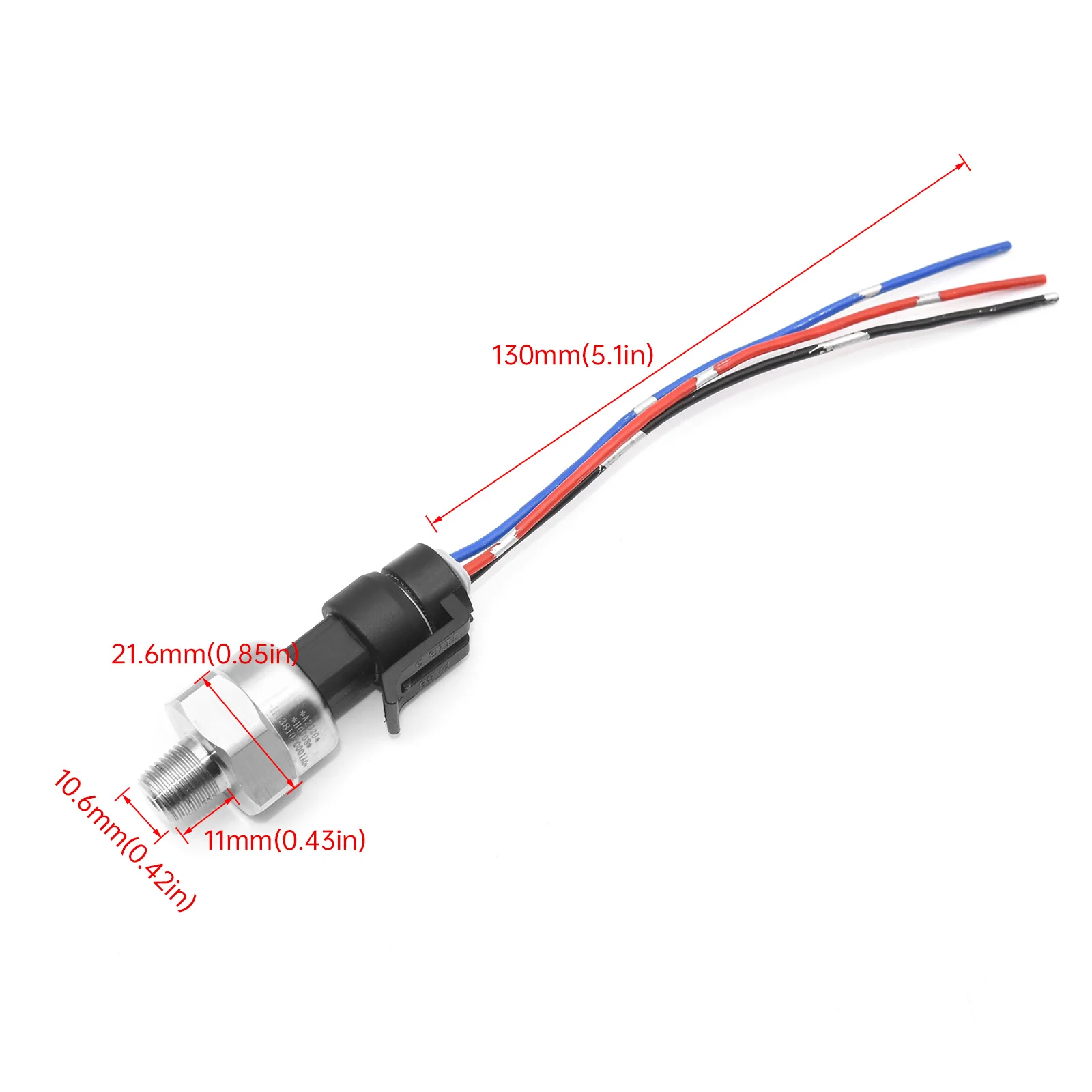

– Material: Stainless steel
– Voltage: DC 5V
– Pressure: 145 psi, 215psi, 300 psi, 500 psi (Optional)
– Thread Type: 1/8″ NPT

Features:

– It’s an advance pressure transducer than traditional mechanical pressure transducer.
– ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
– Light weight and small size, convenient to install and operate.
– It has complete surge voltage protection function.
– Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.

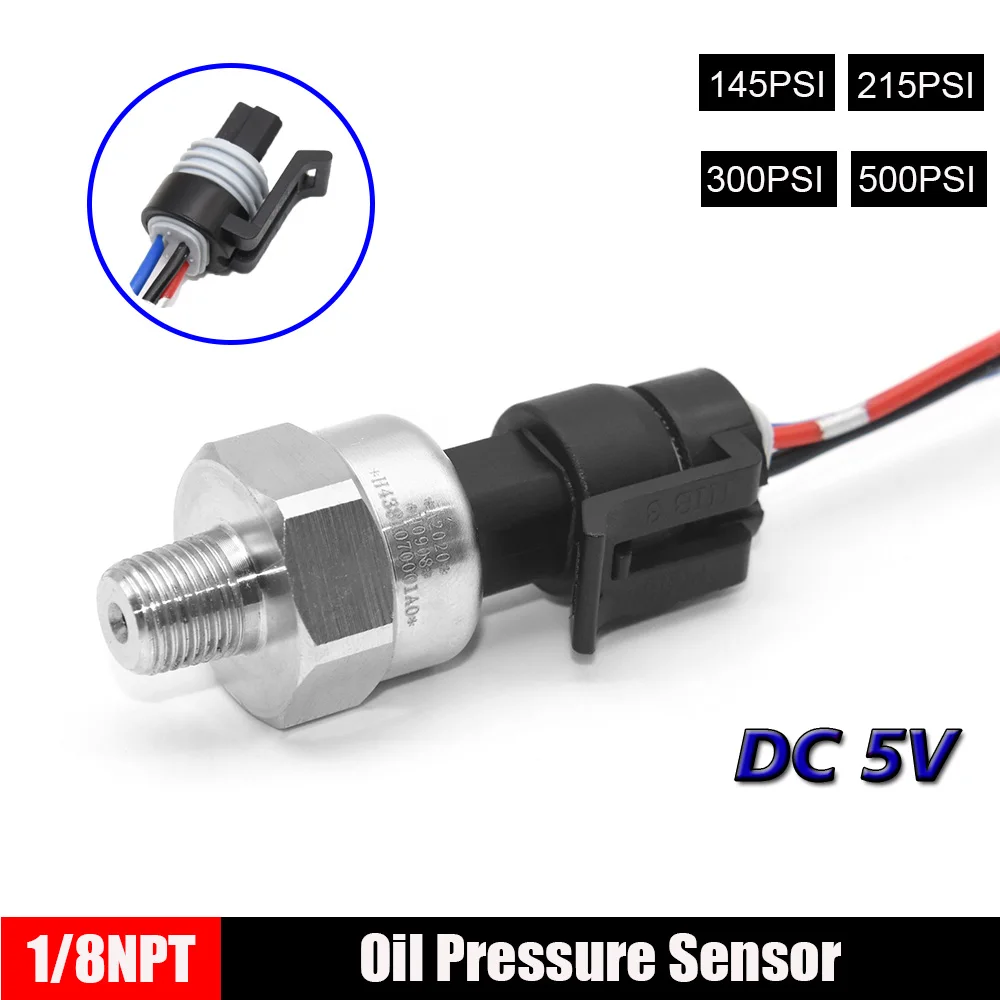

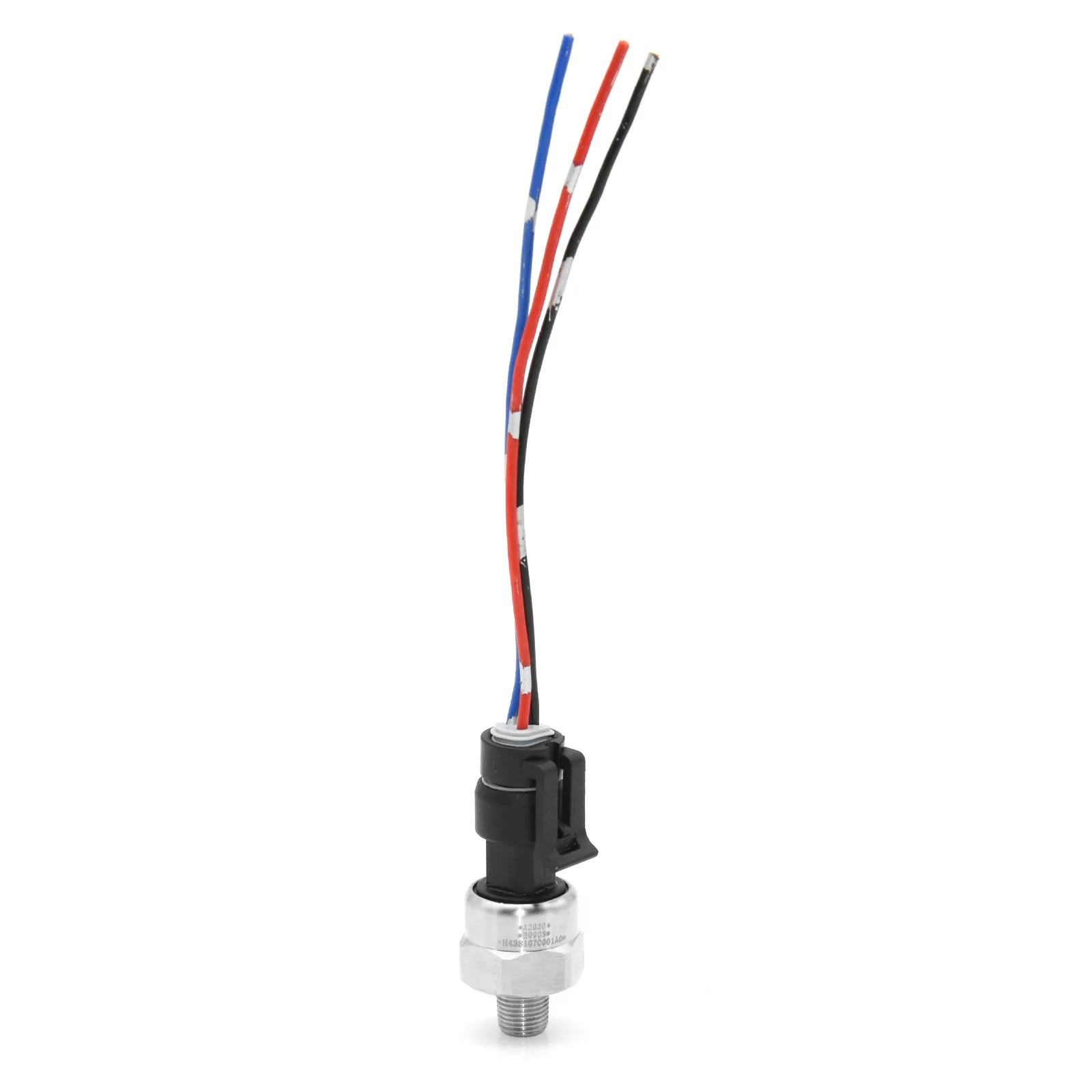

Package Included(as picture):

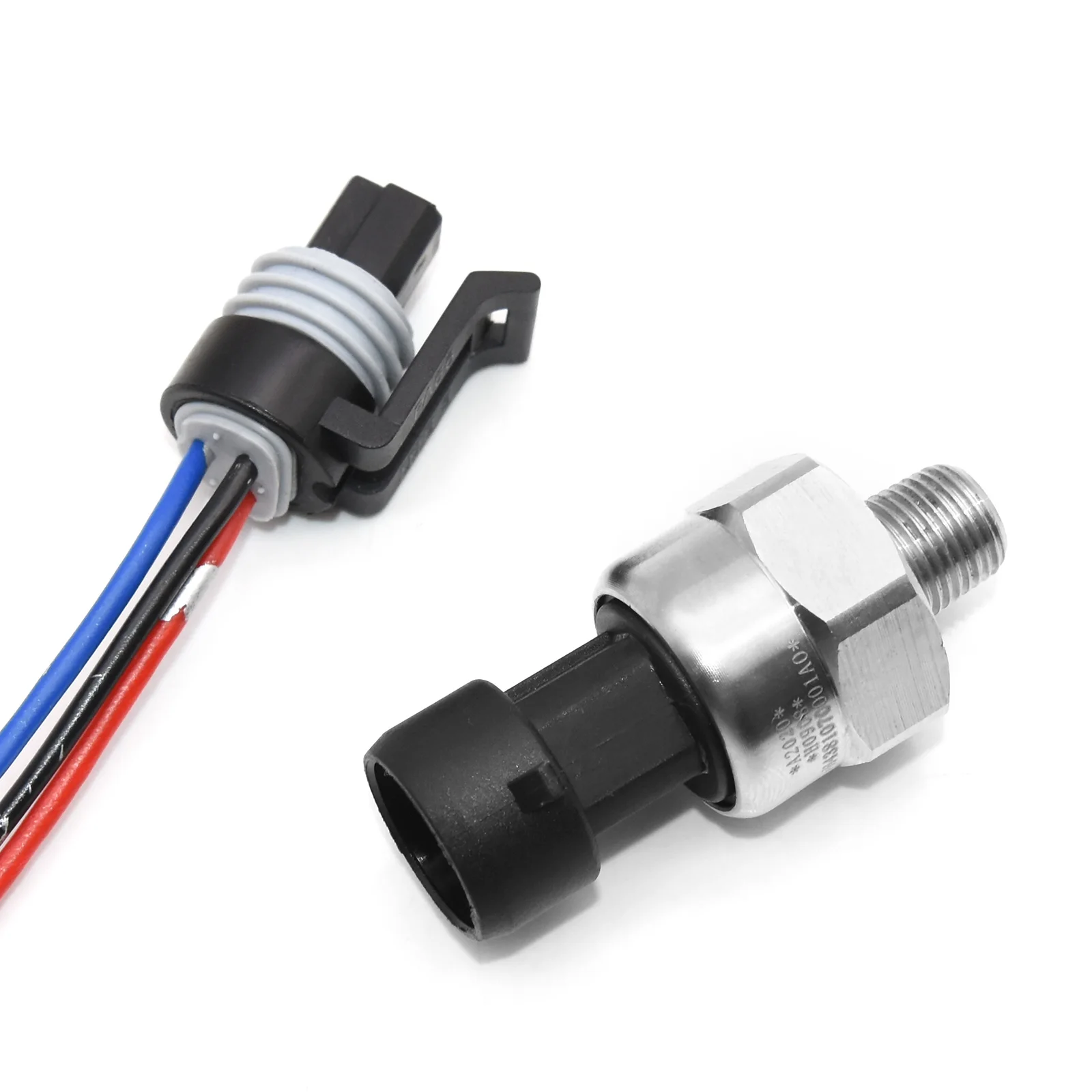

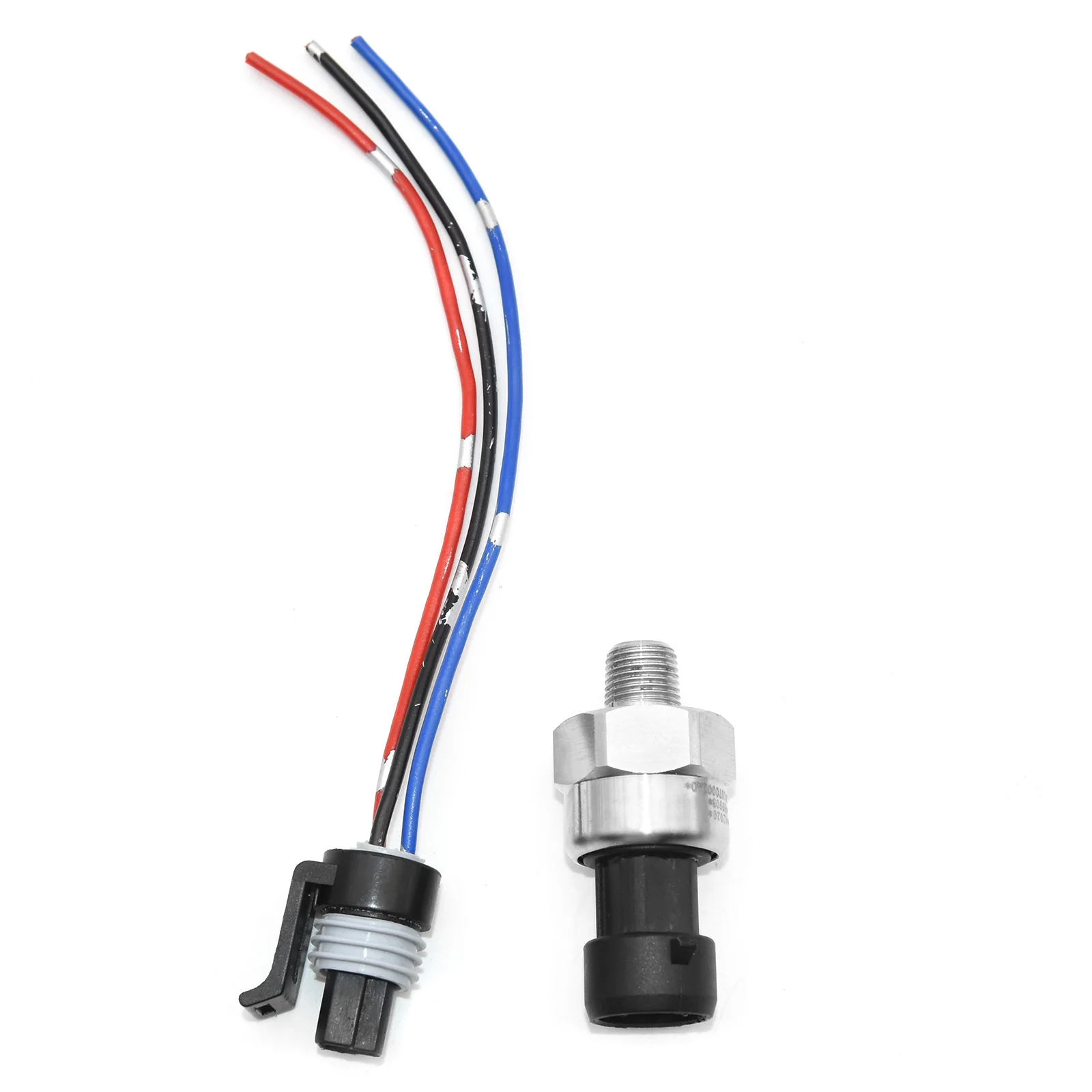

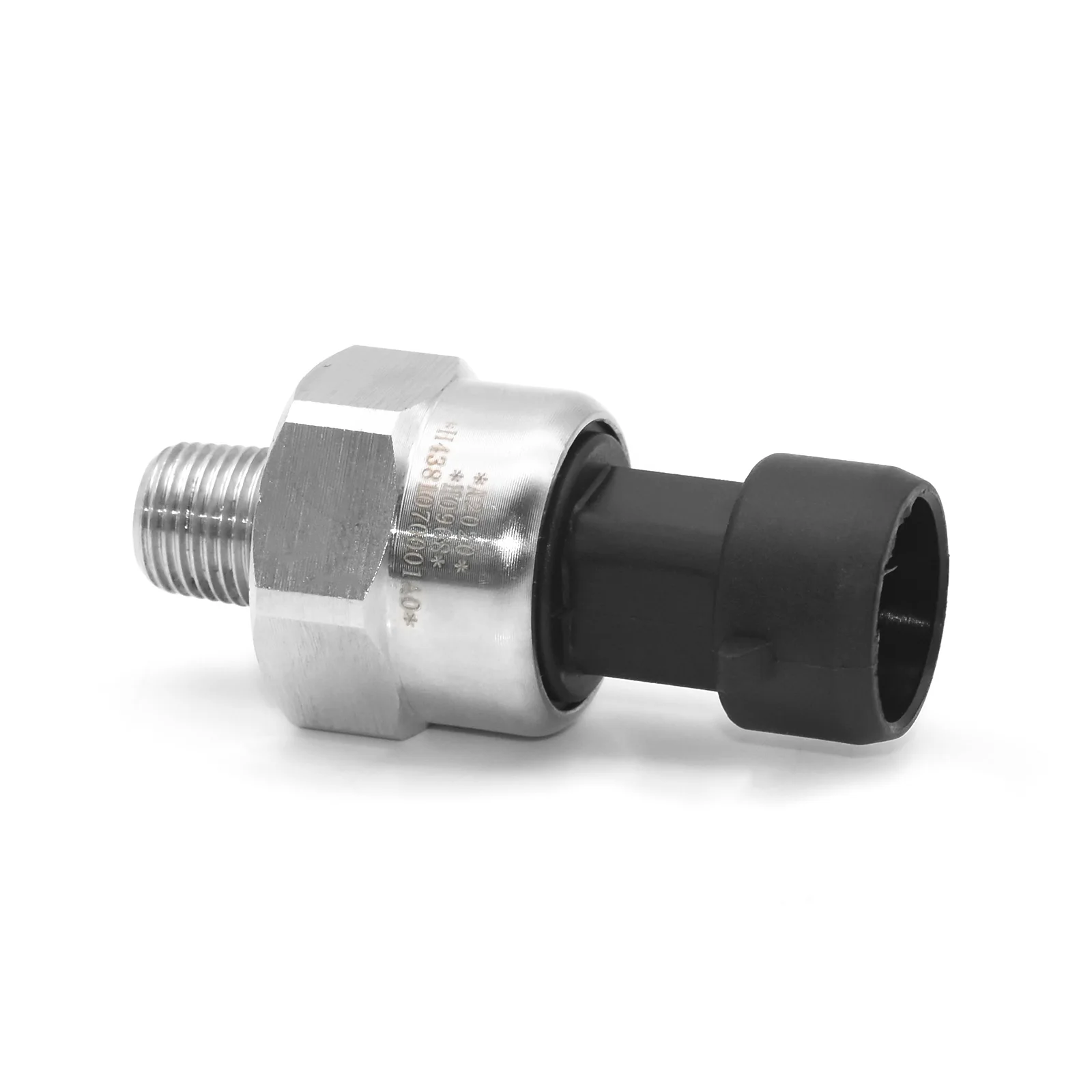

1x Oil Fuel Air Pressure Transducer Transmitter Sensor

145 psi

Input: 0-150 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy: +/-0.5%FS
Thread: 1/8″ NPT
Wiring: Red for +5V; Black for ground; Green for signal output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40°~+120°
Compensation Temperature: 0°~+80°
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical:0.02%FS/°; Maximum:0.05%FS/°
Temperature Effect on Sensitivity: Typical: 0.02%FS/°; Maximum: 0.05%FS/°
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1

215 psi

Input: 0-200 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5V
Working Temperature: -40~+125°
Accuracy: ±1%FS
Thread: 1/8″-27 NPT
Overload Capacity: 2 times of rated pressure
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: ± 0.2%FS/year
Temperature Effect on Zero: Typical: ±0.02%FS/°; Maximum: ±0.05%FS/°
Temperature Effect on Sensitivity: Typical: ±0.02%FS/°; Maximum: ±0.05%FS/°
Shock Resistance: 100g
Anti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3
Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.

300 psi

Input: 0-300 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V
Accuracy: +/-0.5%FS
Thread: 1/8″ NPT
Wiring: Red: +5V; Black: ground; Green: signal output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40~+120°
Compensation Temperature: 0°~+80°
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤ (supply power-6.5V/0.02A)Ω
Long-term stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical: 0.02%FS/°; Maximum: 0.05%FS/°
Temperature Effect on Sensitivity: Typical:0.02%FS/°; Maximum:0.05%FS/°
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1.

500 psi

Input: 0-500 psi (Gauge Pressure)
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, and 500 psi outputs 4.5V.
Accuracy: +/-1%FS
Thread: 1/8″ NPT
Wiring: Red for +5V; Black for ground; Yellow (Green) for signal output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40°~+120°
Compensation Temperature: 0°~+80°
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤ (supply power-6.5V/0.02A)Ω
Long-term stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical: 0.02%FS/°; Maximum: 0.05%FS/°
Temperature Effect on Sensitivity: Typical: 0.02%FS/°; Maximum:0.05%FS/°
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1.
